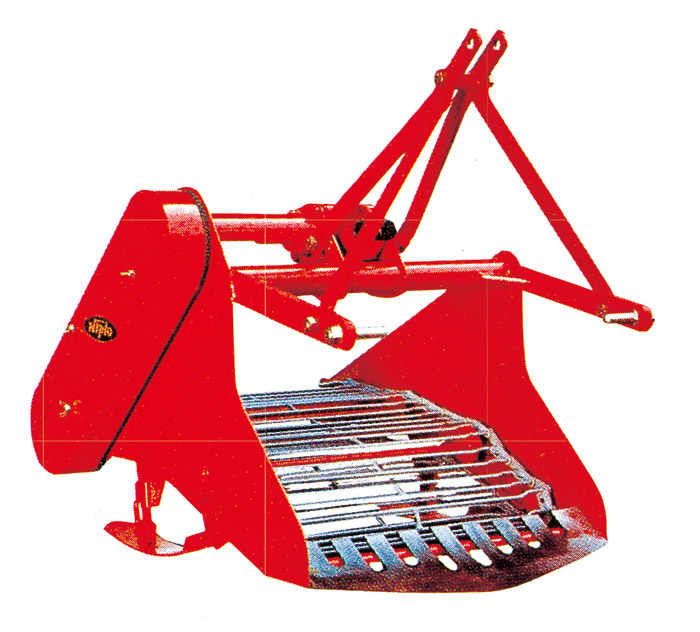

Highly effective in digging root crops such as potatoes, onions and bulbs.
Specially designed share effectively scoops soil and crops.
Soil and crops are completely separated while they are conveyed backward by the swinging conveyor.
Changing the gradient of the conveyor according to the crop size and the soil condition, the shifting can be so controlled as to keep crops free from bruises.
The universal joint is a standard attachment.
Models | D-551A | D-65A(H) | VG-1403-1L | B-80 |
---|---|---|---|---|
Applicable Crops | Potatoes, Onions, etc. | Bulbs, etc. | ||
Digging Width | 550mm | 650mm | 1400mm | 800mm |
HP of Tractor Required | 9~13HP | 15~25HP | above 50HP | 15~25HP |
3 Point Hitch Linkage | Cat. 0·1 | Cat. 1·2 | Cat. 0·1 | |
Driving System | Side Drive by V-belt | |||
Digging Depth | 200~300mm | |||
Weight | 85kg | 99kg | 525kg | 115kg |
Overall Length | 1180mm | 1110mm | 2380mm | 1030mm |
Overall Width | 805mm | 790mm | 1705mm | 980mm |
Overall Height | 800mm | 920mm | 1120mm | 930mm |
Mounting Position | Center Mounted | |||
No. of Webbes | 30 | 42 | 74 | 46 |
Web Spacing of Conveyor | 32mm | 40mm | 19mm | |
Working Speed | 1.0~2.0km/h | |||
Efficiency | 73~145min./10a | 62~123min./10a | 20~40min./10a | 67~100min./10a |
